Product Name: PS3/PC Dual Player Controller with LED

Type ID: XM-11

Release date: 06-01-2018

Retail link: Click here

Wholesale MOQ: 120

Shipping: DHL

Features:

  • USB 2.0 protocol, the response speed is faster than USB1.1;
  • MicroUSB jack for connecting any standard USB cable;
  • Compatible with win10/win8/win7/vista/XP/2000/98, PS3, Linux, MAC, Android, Raspberry Pi;
  • No Support PS3 Home Button(PS button);
  • Supports Mode button for direction control switching between X/Y axes and Digital-pad;
  • Lead-free process;
  • No soldering required;
  • Kit contains all the wires with harnesses and USB cable;

    Every player's button 1 to 8 each has a corresponding LED indicating their status.

    Every player's button 1-8 LED effect can be configured to the following 4 states. The default state is that all the LEDs are disabled.

  • Always lighting on;
  • All LEDs are turned off status, the corresponding LEDs light up when the button is pressed.
  • All LEDs are turned on status, the corresponding LEDs light down when the button is pressed.
  • Disable all LED(default).

    Use the joystick's UP + Mode button to switch through the above modes.

    When all the buttons have not been pressed for more than 6 minutes, all LEDs show a breathing effect.

    The LED effects and Mode configuration are stored internally. Next time plug in will read these configuration first, No need to reconfigure.

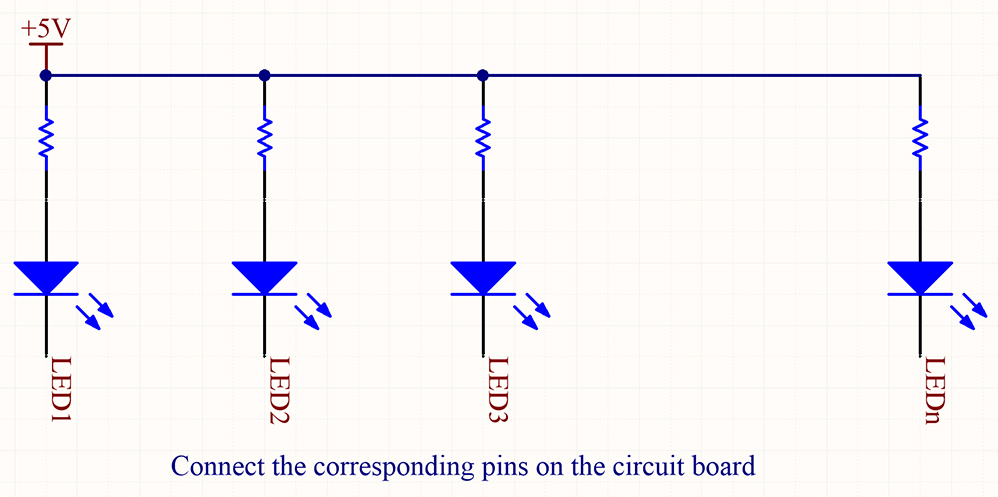

    Please note: The LEDs use a common anode connection. The LED is a diode, so the pins have the difference between positive and negative electrodes. If the pins are reversed, it will not light.

Why the 2nd player of XM-11 can't work on the Raspberry Pi?
-This situation only occurs on the RetroPie system. There are two solutions.
(1) Add the following to /boot/cmdline.txt -- just add a space to the end of the existing entry, so it is all on one line):
    usbhid.quirks=0x16c0:0x05e1:0x040
    Just modify this file and restart, the second player will activate.
(2) I recommend using Recalbox instead. The Recalbox system doesn't have this issue.

How to wiring?

(1) First, the LED pins are divided into positive and negative. You need to distinguish them first. Because LED is a kind of diode, it won't light up when reversed.

(2) Second, you have 2 * 8 red wires. Make sure that one end is connected to the VCC pin of the board and the other end is connected to the positive pins of the LEDs.

(3) Third, using 4PIN wires, connect the negative pins of the LEDs to the position marked LED1, LED2, LED3... on the board.

(4) At this step, the wiring is finished. You can use USB cable connecting the board to a PC and press the button. If no LED lights up, please use UP + MODE to switch to the mode you want.



Last update: 10-May-2023 16:00
